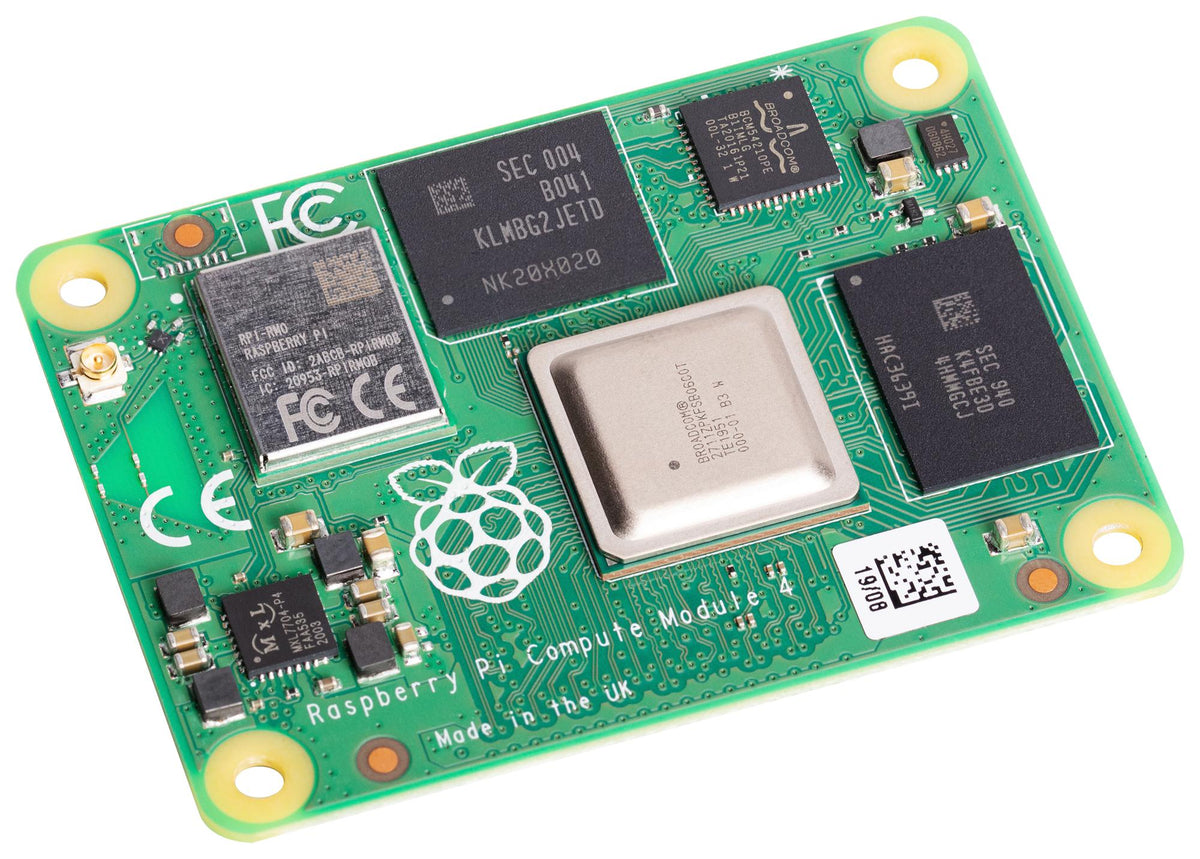

The Compute Module 4 is engineered to deliver robust performance and flexibility. It features 8GB of LPDDR4 RAM and 8GB of eMMC storage, providing ample memory and storage capacity for demanding tasks. The module supports wireless connectivity with 2.4GHz and 5GHz 802.11 b/g/n/ac Wi-Fi and Bluetooth 5.0 BLE, ensuring seamless communication and data transfer.

The VideoCore VI graphics processor supports OpenGL ES 3.x and can handle 4Kp60 hardware decode of H.265 (HEVC) video, as well as 1080p60 hardware decode and 1080p30 hardware encode of H.264 (AVC) video. Dual HDMI interfaces allow for resolutions up to 4K, making it ideal for high-definition displays.

The module includes a single-lane PCI Express 2.0 interface, dual MIPI DSI display interfaces, and dual MIPI CSI-2 camera interfaces, offering extensive connectivity options. It also features a Gigabit Ethernet PHY with IEEE 1588 support and 28 GPIO pins, with up to 6 x UART, 6 x I2C, and 5 x SPI interfaces.

Key Features:

• 64-bit quad-core BCM2711 application processor

• 8GB LPDDR4 RAM and 8GB eMMC storage

• VideoCore VI graphics with OpenGL ES 3.x support

• 4Kp60 H.265 (HEVC) and 1080p60 H.264 (AVC) video decode

• Dual HDMI interfaces supporting up to 4K resolution

• Single-lane PCI Express 2.0 interface

• Dual MIPI DSI display and dual MIPI CSI-2 camera interfaces

• Gigabit Ethernet PHY with IEEE 1588 support

• 28 GPIO pins with multiple UART, I2C, and SPI interfaces

• 2.4GHz and 5GHz 802.11 b/g/n/ac Wi-Fi and Bluetooth 5.0 BLE

• Compact 55mm x 40mm board size

Technical Specifications:

• Silicon Manufacturer: Broadcom

• SOC Type: Broadcom BCM2711

• Silicon Family Name: BCM2xxx

• Core Type: 64-bit ARM Cortex-A72 v8

• Core Architecture: ARM

• No. of Cores: 4 Cores

• Core Sub-Architecture: Cortex-A72

• RAM Memory: 8GB LPDDR4

• GPU: VideoCore VI

• Silicon Core Number: BCM2711

• Kit Contents: Compute Module 4 with 8GB RAM, 8GB eMMC, Wireless

• CPU Speed: 1.5GHz

• eMMC: 8GB

• Compute Module Interface: I2C, SPI, PCIe Gen 2 x 1

• Wi-Fi Connectivity: 2.4GHz and 5GHz 802.11 b/g/n/ac

• Bluetooth Connectivity: Bluetooth 5.0 BLE

• Product Range: Compute Module 4 Series
