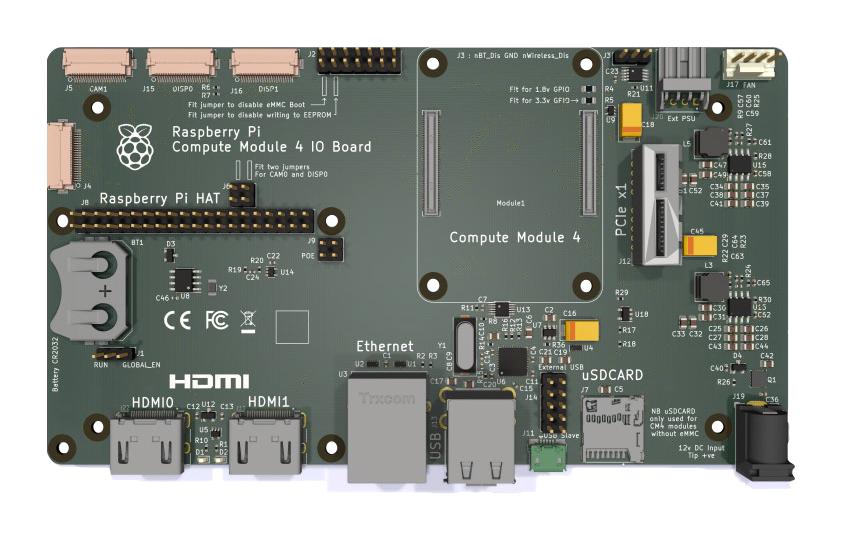

Raspberry Pi Compute Module 4 IO board (CM4IO) is designed to assist in the development of products that make use of the Raspberry Pi Compute Module 4. The Raspberry Pi Compute Module 4 IO Board contains many of the interfaces that the Raspberry Pi 4, Model. The significant difference between CM4IO and Raspberry Pi 4, Model B is the addition of a single PCIe socket. The CM4IO has been designed as both a reference design for CM4 or to be used directly as a product with the possible addition of PCIe Cards and Raspberry Pi HATs.
External +12V PSU
2 x full-size HDMI 2.0 connectors
Gigabit Ethernet RJ45 with POE support
2 x USB 2 socket, with header for two more sockets
Micro USB socket for updating the CM4 and micro SD card socket for CM4Lite modules
PCIe Gen 2 socket
Standard Fan connector
External power connector (+5V, +12V)
2 x MIPI DSI display FPC connectors, 2 x MIPI CSI-2 camera FPC connectors
RTC with battery socket and ability to wake up CM4

Silicon Manufacturer: Broadcom

Silicon Family Name: BCM2xxx

Core Architecture: ARM

Core Sub-Architecture: Cortex-A72

Silicon Core Number: BCM2711

Kit Contents: Compute Module 4 I/O Board

Product Range: Compute Module 4
