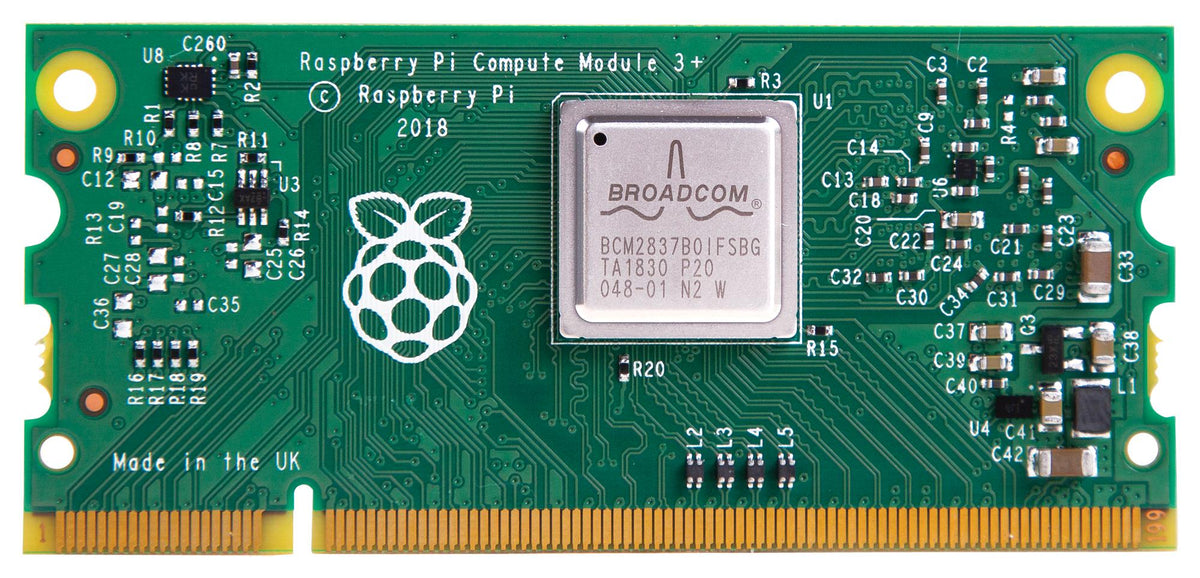

RASPBERRY PI COMPUTE MODULE 3+ 16GB

The Raspberry Pi Compute Module 3 + (CM3+) are DDR2-SODIMM-mechanically-compatible System on Modules (SoMs) containing a processor, memory, eMMC Flash (except "Lite" version) and supporting power circuitry. These modules allow a designer to leverage the Raspberry Pi hardware and software stack in their own custom systems and form factors. In addition the modules have extra I/O interfaces over and above what is available on the Raspberry Pi model A/B boards, providing more options and fostering rapid development for the designer. The Compute Module 3 + 16GB has a 200 pin SODIMM design and contains 16GB of on-board eMMC flash memory.

• Broadcom BCM2837B0 Cortex-A53 64-bit 1.2GHz SoC
• 1GB LPDDR2 SDRAM Memory
• 16GB eMMC flash memory storage on-board
• Production life guaranteed until January 2026
• H.264, MPEG-4 decode (1080p30), H.264 encode (1080p30), OpenGL ES 1.1, 2.0 graphics
• Compatible with NOOBS_3_0_0

Applications

Embedded Design & Development, Electronics Design, Industrial, IIoT (Industrial Internet of Things), IoT (Internet of Things)

Core Architecture: ARM
Core Sub-Architecture: Cortex-A53
Kit Contents: Compute Module 3 w/16GB eMMC Memory
Product Range: Compute Modules 3+
SVHC: No SVHC (27-Jun-2018)
Silicon Core Number: BCM2837B0
Silicon Family Name: BCM2xxx
Silicon Manufacturer: Broadcom
