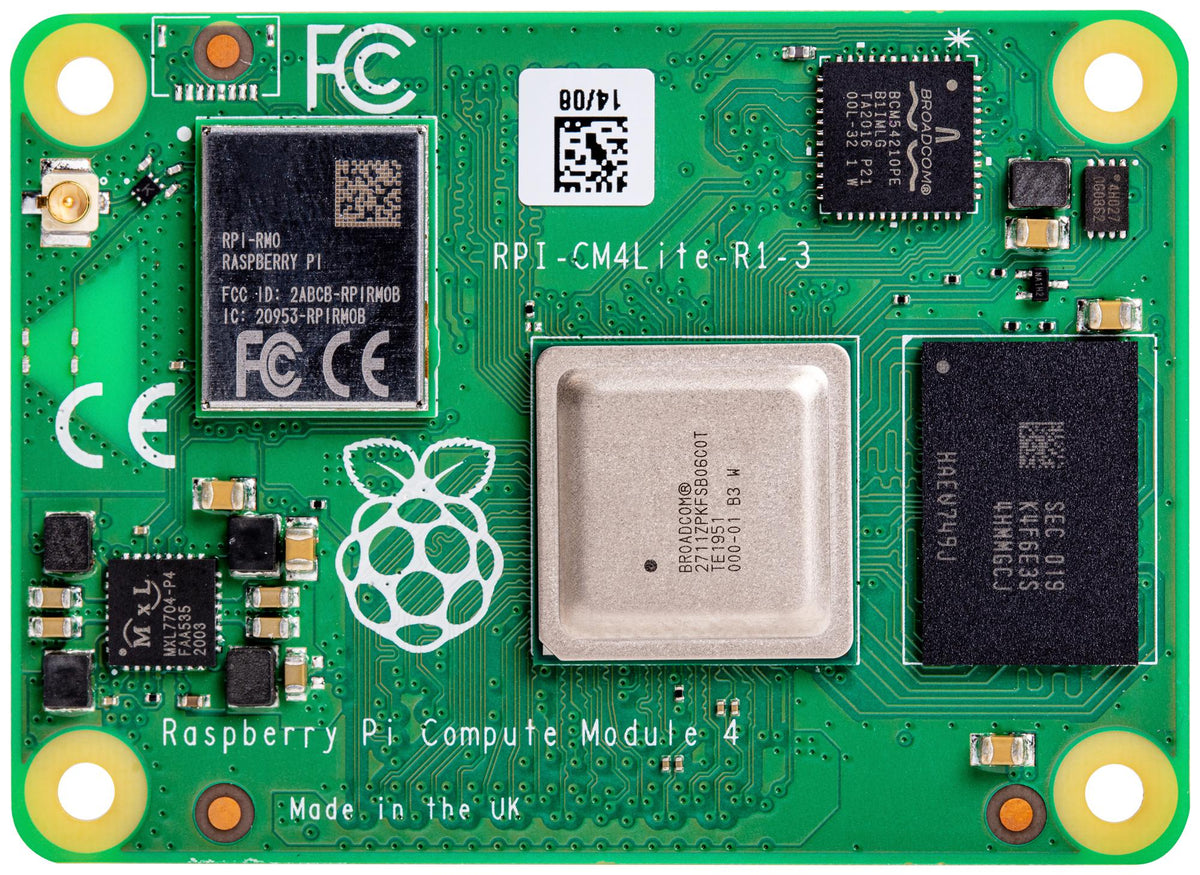

The Compute Module 4 Lite harnesses the power of the 64-bit ARM Cortex-A72 v8 architecture, featuring 8GB of LPDDR4 RAM for efficient multitasking and robust performance. With VideoCore VI GPU, this module supports OpenGL ES 3.x, providing 4Kp60 hardware decode for H.265 (HEVC) video and 1080p60 hardware decode with 1080p30 hardware encode for H.264 (AVC) video. Dual HDMI interfaces cater to high-resolution displays, while single-lane PCI Express 2.0 and dual MIPI DSI/CSI-2 interfaces extend its versatility. Gigabit Ethernet PHY with IEEE 1588 support and 28 GPIO pins, including multiple UART, I2C, and SPI interfaces, make it highly adaptable for various projects. Compact in size (55mm x 40mm), this module integrates seamlessly into space-constrained applications.

Key Features:

• 8GB RAM, 0GB (Lite) eMMC storage

• VideoCore VI graphics

• Dual HDMI interfaces, up to 4K resolution

• Single-lane PCI Express 2.0 interface

• Dual MIPI DSI display and dual MIPI CSI-2 camera interfaces

• Gigabit Ethernet PHY with IEEE 1588 support

• 28 GPIO pins, with multiple UART, I2C, and SPI interfaces

• Compact 55mm x 40mm board size

Technical Specifications:

• Silicon Manufacturer: Broadcom

• SOC Type: Broadcom BCM2711

• Silicon Family Name: BCM2xxx

• Core Type: 64-bit ARM Cortex-A72 v8

• Core Architecture: ARM

• No. of Cores: 4 Cores

• Core Sub-Architecture: Cortex-A72

• RAM Memory: 8GB LPDDR4

• GPU: VideoCore VI

• Silicon Core Number: BCM2711

• Kit Contents: Compute Module 4 Lite with 8GB RAM

• CPU Speed: 1.5GHz

• eMMC: None

• Compute Module Interface: I2C, SPI, PCIe Gen 2 x 1

• Wi-Fi Connectivity: 2.4GHz and 5GHz 802.11 b/g/n/ac

• Bluetooth Connectivity: Bluetooth 5.0 BLE

• Product Range: Compute Module 4 Lite Series
