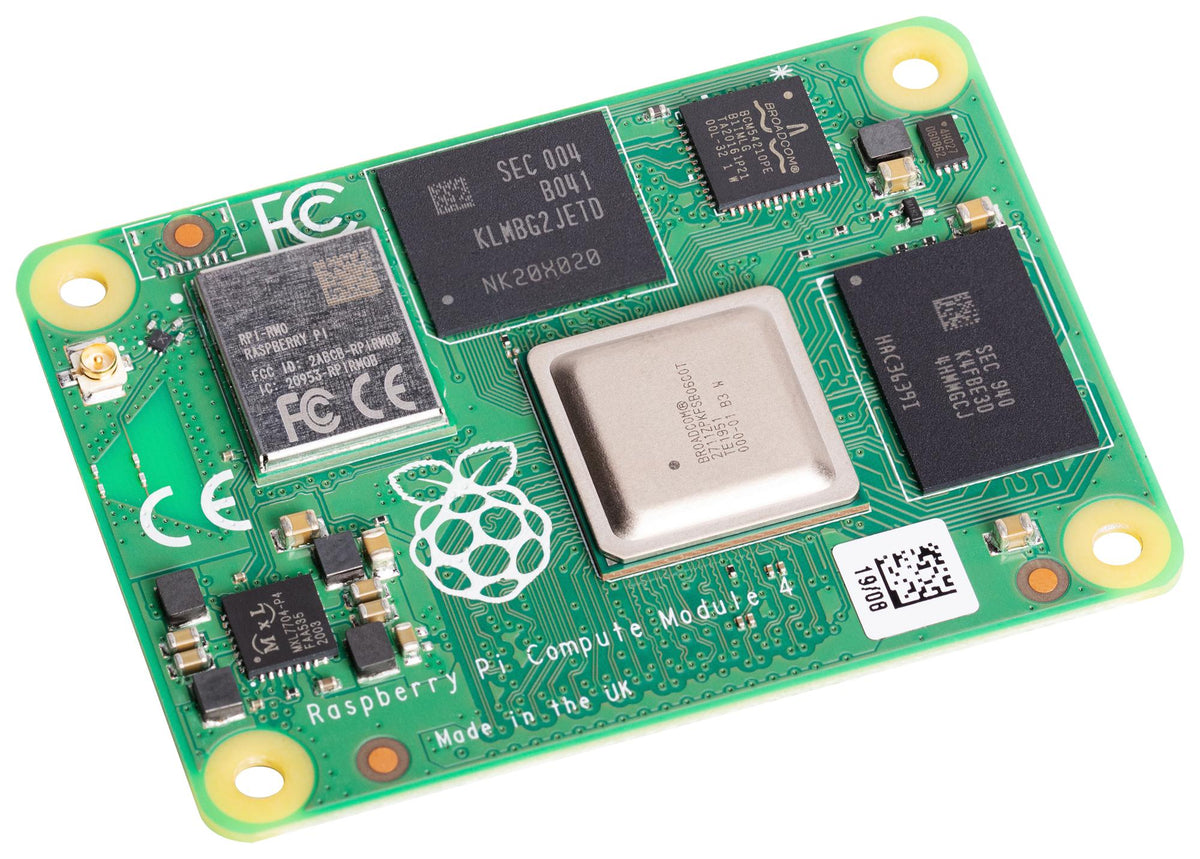

COMPUTE MODULE 4 is built on the 64-bit quad-core BCM2711 application processor. The Compute Module 4 delivers a step change in performance over its predecessors such as faster CPU cores, better multimedia and more interfacing capabilities.

• Features wireless connectivity, 4GB RAM, 16GB eMMC storage
• VideoCore VI graphics, supporting OpenGL ES 3.x
• 4Kp60 hardware decode of H.265 (HEVC) video
• 1080p60 hardware decode and 1080p30 hardware encode of H.264 (AVC) video
• Dual HDMI interfaces, at resolutions up to 4K
• Single-lane PCI Express 2.0 interface
• Dual MIPI DSI display, and dual MIPI CSI-2 camera interfaces
• Gigabit Ethernet PHY with IEEE 1588 support
• 28 GPIO pins, with up to 6 x UART, 6 x I2C and 5 x SPI
• 55mm x 40mm board size

Applications

Embedded Design & Development, Electronics Design, Industrial, IIoT (Industrial Internet of Things), IoT (Internet of Things)

Silicon Manufacturer: Broadcom
Silicon Family Name: BCM2xxx
Core Architecture: ARM
Core Sub-Architecture: Cortex-A72
Silicon Core Number: BCM2711
Kit Contents: Compute Module 4 w/ 4GB RAM, 16GB eMMC, Wireless
Product Range: Compute Module 4
