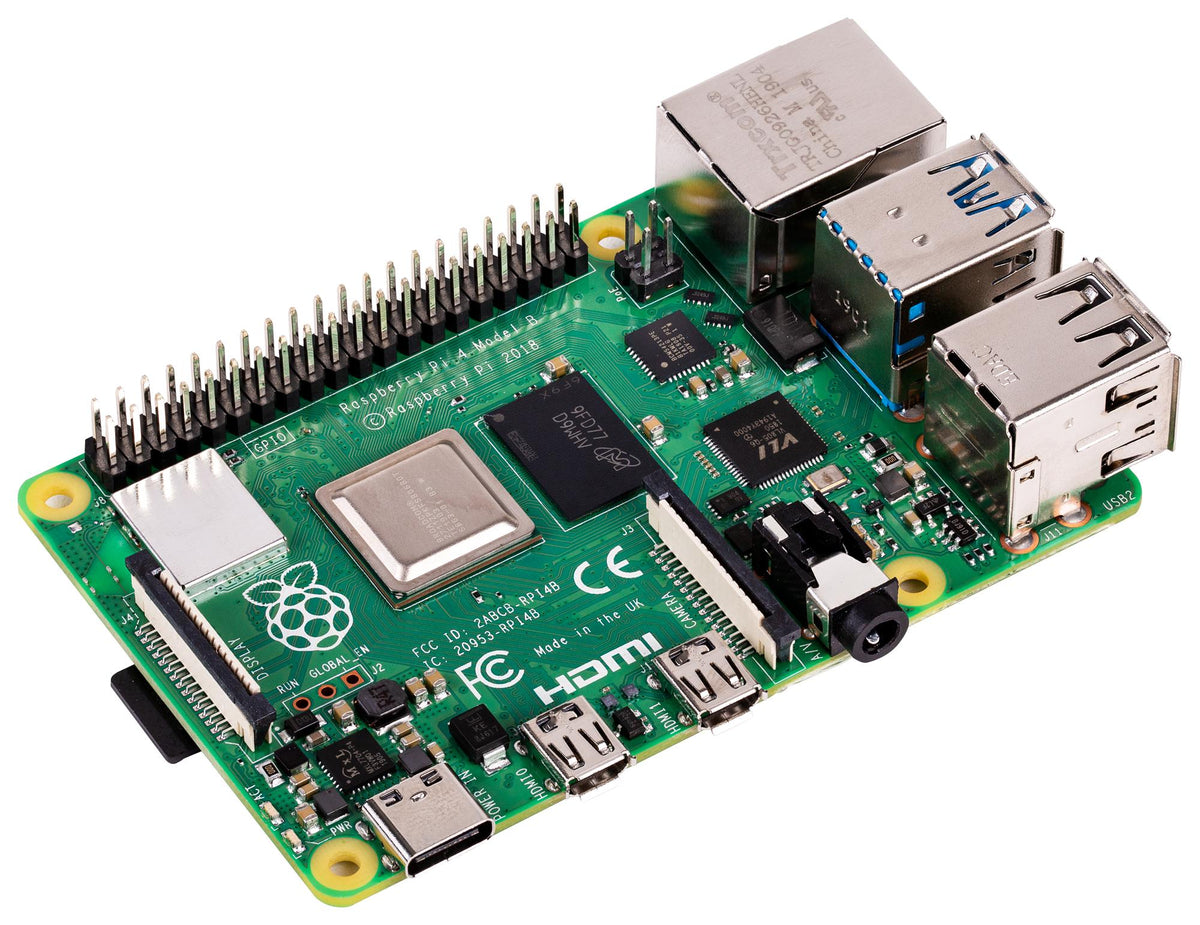

The Raspberry Pi 4 Model B 4GB Board is equipped with a high-performance 64-bit quad-core Cortex-A72 processor running at 1.5GHz, 4GB of LPDDR4 SDRAM, and dual-display support at resolutions up to 4K via two micro-HDMI ports. It supports hardware video decode at up to 4Kp60, dual-band 2.4/5.0GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, and USB 3.0 ports. The board is PoE capable with an additional PoE HAT and has modular compliance certification for reduced compliance testing, saving both cost and time. Ideal for embedded design, development, hobby projects, education, IoT, and networking applications.

Key Features:

• Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

• 4GB LPDDR4 SDRAM

• Dual-band 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE

• True Gigabit Ethernet

• 2x USB 3.0 ports, 2x USB 2.0 ports

• Fully backwards compatible 40-pin GPIO header

• 2x Micro HDMI ports supporting up to 4K 60Hz video resolution

• 2-lane MIPI DSI/CSI ports for camera and display

• 4-pole stereo audio and composite video port

• MicroSD card slot for OS and data storage

• Requires 5.1V, 3A power via USB-C or GPIO

• PoE enabled (requires PoE HAT)

Applications:

• Embedded Design & Development

• Hobby & Education

• IoT (Internet of Things)

• Communications & Networking

Contents:

• Raspberry Pi 4 Model B Board only

Technical Specifications:

• Silicon Manufacturer: Broadcom

• SOC Type: Broadcom BCM2711

• Silicon Family Name: BCM2xxx

• Core Type: Cortex-A72 (ARM v8) 64-bit

• Core Architecture: ARM

• No. of Cores: 4 Cores

• Core Sub-Architecture: Cortex-A72

• GPU: VideoCore VI

• CPU Speed: 1.5GHz

• Silicon Core Number: BCM2711

• Kit Contents: Raspberry Pi 4 Model B Board

• RAM Memory Size: 4GB

• USB Ports: USB 2.0 x 1, USB 3.0 x 2, USB-C OTG x 2

• Ethernet Ports: Gigabit Ethernet

• HDMI Ports: micro HDMI x 2

• Product Range: Raspberry Pi 4 Model B

• Audio / Video Interface: 3.5mm Audio Jack

• General Purpose I/O: 40 Pins

• Display Interface: Supported

• Memory Card Support: microSD

• Camera Interface: Supported

• Wi-Fi Connectivity: 2.4GHz and 5GHz 802.11 b/g/n/ac

• Bluetooth Connectivity: Bluetooth 5.0 BLE

• Power Inlet: USB Type C

• Power Over Ethernet: Supported
