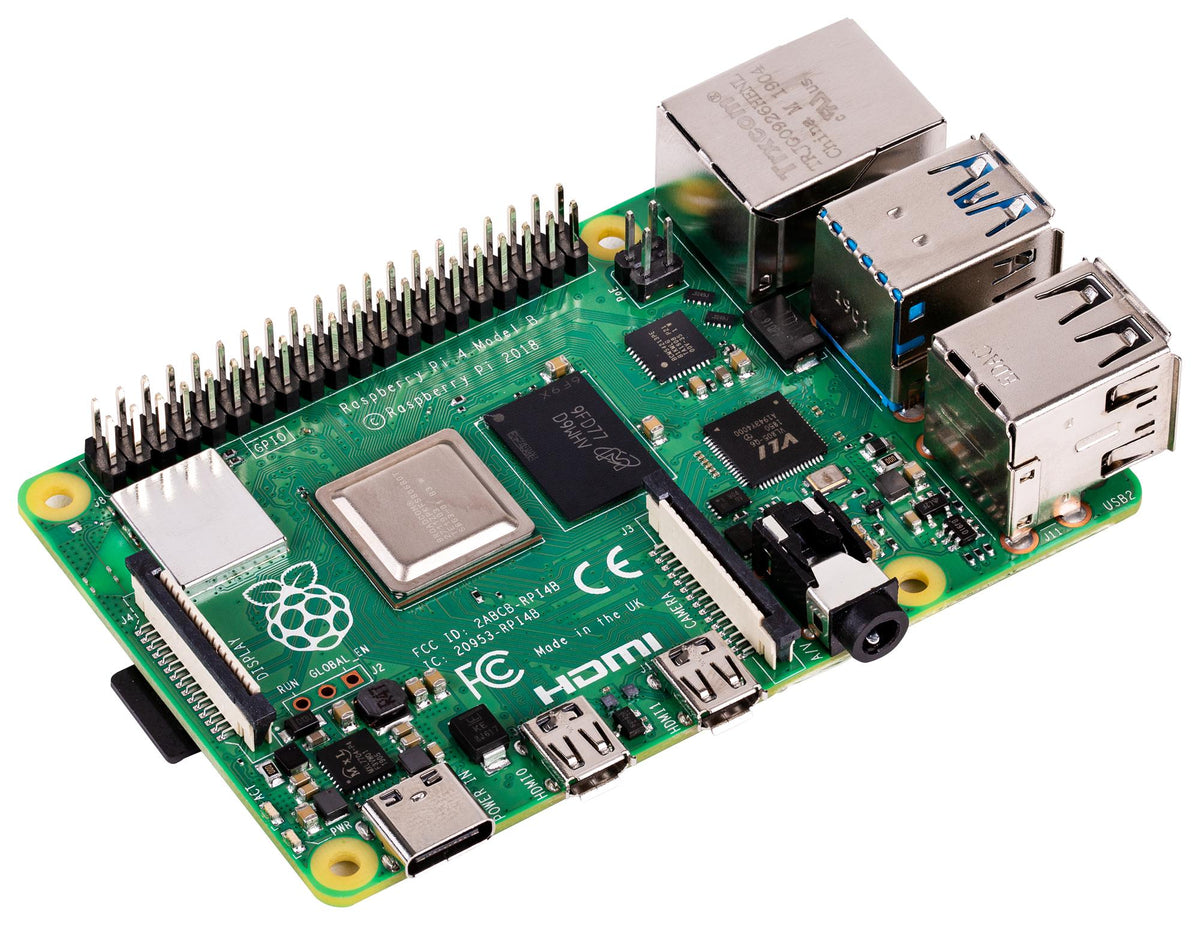

The Raspberry Pi 4 Model B delivers desktop-level performance that rivals entry-level x86 PC systems. It boasts a high-performance 64-bit quad-core Cortex-A72 processor clocked at 1.5GHz, 4GB of LPDDR4-2400 SDRAM, and supports dual displays at resolutions up to 4K via two micro-HDMI ports. This board also features hardware video decode at up to 4Kp60, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).

The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be incorporated into end products with reduced compliance testing, thereby cutting both costs and time to market.

Key Features:

• Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

• Memory: 4GB LPDDR4-2400 SDRAM

• Wireless: 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE

• Networking: True Gigabit Ethernet

• USB Ports: 2x USB 3.0 ports, 2x USB 2.0 ports

• GPIO: Fully backwards compatible 40-pin GPIO header

• Display: 2x Micro HDMI ports supporting up to 4K 60Hz video resolution

• Audio/Video: 4-pole stereo audio and composite video port

• Storage: MicroSD card slot for loading operating system and data storage

• Power: Requires 5.1V, 3A power via USB-C or GPIO

• PoE: PoE (Power over Ethernet) enabled (requires PoE HAT)

Applications:

• Embedded Design & Development

• Hobby & Education

• IoT (Internet of Things)

• Communications & Networking

Contents:

• Raspberry Pi 4 Model B Board only

• Bulk Purchase of 150 pcs

Product Information:

• Silicon Manufacturer: Broadcom

• SOC Type: Broadcom BCM2711

• Silicon Family Name: BCM2xxx

• Core Type: Cortex-A72 (ARM v8) 64-bit

• Core Architecture: ARM

• Number of Cores: 4

• Core Sub-Architecture: Cortex-A72

• GPU: VideoCore VI

• CPU Speed: 1.5GHz

• Silicon Core Number: BCM2711

• Kit Contents: Raspberry Pi 4 Model B Board

• RAM Memory Size: 4GB

• USB Ports: USB 2.0 x 1, USB 3.0 x 2, USB-C OTG x 2

• Ethernet Ports: Gigabit Ethernet

• HDMI Ports: micro HDMI x 2

• Product Range: Raspberry Pi 4 Model B

• Audio/Video Interface: 3.5mm Audio Jack

• General Purpose I/O: 40 Pins

• Display Interface: Supported

• Memory Card Support: microSD

• Camera Interface: Supported

• Wi-Fi Connectivity: 2.4GHz and 5GHz 802.11 b/g/n/ac

• Bluetooth Connectivity: Bluetooth 5.0 BLE

• Power Inlet: USB Type C
