RASPBERRY-PI

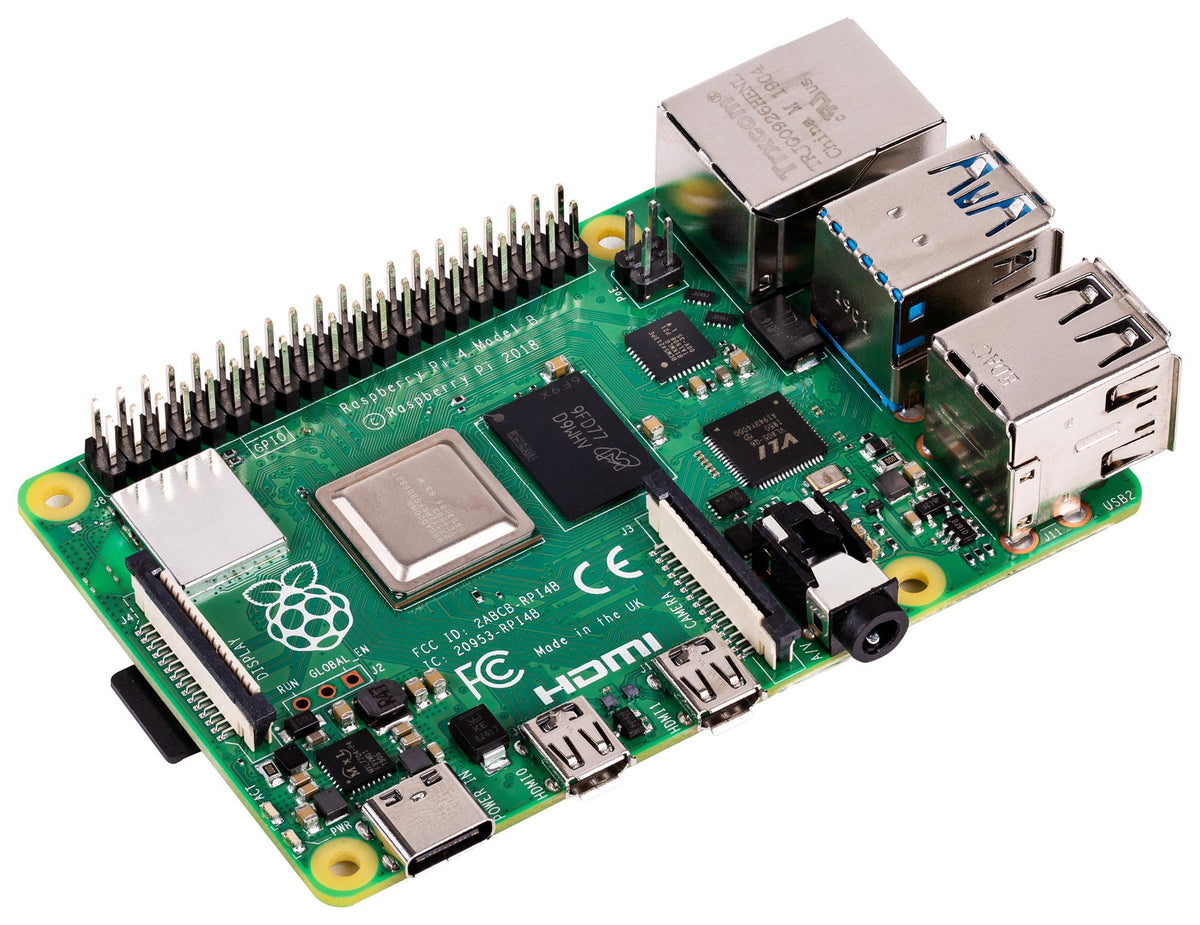

Raspberry Pi 4 Model B 2GB Board - RPI4-MODBP-2GB RASPBERRY-PI
SKU: SC15184
£51.99
£62.39
-17%
Key Features
- High quality materials
- Fast shipping
- 30-day returns
Product Description
Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems. This products key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, 2GB of RAM, dual-band 2.4/5.0GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0 and PoE capability (via a separate PoE HAT add-on). The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.
- Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- 2GB LPDDR4 SDRAM
- 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE
- True Gigabit Ethernet
- 2x USB 3.0 ports, 2x USB 2.0 Ports
- Fully backwards compatible 40-pin GPIO header
- 2x Micro HDMI ports supporting up to 4K 60Hz video resolution
- 2-lane MIPI DSI/CSI ports for camera and display
- 4-pole stereo audio and composite video port
- MicroSD card slot for loading operating system and data storage
- Requires 5.1V, 3A power via USB-C or GPIO
- PoE (Power over Ethernet) enabled (requires PoE HAT)
Applications
Embedded Design & Development, Hobby & Education, IoT (Internet of Things), Communications & Networking
Contents
Pi 4 Model B Board only
SOC Type: Broadcom BCM2711
Silicon Family Name: BCM2xxx
Core Type: Cortex-A72 (ARM v8) 64-bit
Core Architecture: ARM
No. of Cores: 4Cores
Core Sub-Architecture: Cortex-A72
GPU: VideoCore VI
CPU Speed: 1.5GHz
Silicon Core Number: BCM2711
Kit Contents: Raspberry Pi 4 Model B Board
RAM Memory Size: 2GB
USB Ports: USB 2.0 x 1, USB 3.0 x 2, USB-C OTG x 2
Ethernet Ports: Gigabit Ethernet
HDMI Ports: micro HDMI x 2
Audio / Video Interface: 3.5mm Audio Jack
Product Range: Raspberry Pi 4 Model B
General Purpose I/O: 40Pins
Display Interface: Supported
Memory Card Support: microSD
Camera Interface: Supported
Wi-Fi Connectivity: 2.4GHz and 5GHz 802.11 b/g/n/ac
Bluetooth Connectivity: Bluetooth 5.0 BLE
Power Inlet: USB Type C
Power Over Ethernet: Supported
