• Brand: RASPBERRY-PI

• Model Number (MPN): CM5102016

• Processor: Broadcom BCM2712 quad-core 64-bit ARM Cortex-A76 at 2.4GHz

• RAM: 2GB LPDDR4

• Storage: 16GB eMMC

• Connectivity: Dual-band 2.4GHz/5.0GHz IEEE 802.11 b/g/n/ac wireless, Bluetooth 5.0 BLE, Gigabit Ethernet PHY

• Dimensions: 55mm x 40mm x 4.7mm with 4 x M2.5 mounting holes

• USB Ports: 1 x USB 2.0, 2 x USB 3.0

• Video Interfaces: 2 x HDMI 2.0 ports, 2 x 4-lane MIPI ports, 4Kp60 HEVC decoder

• Power Supply: Single +5V PSU input supports USB PD for up to 5A

• Operating Temperature: -20??C to +85??C

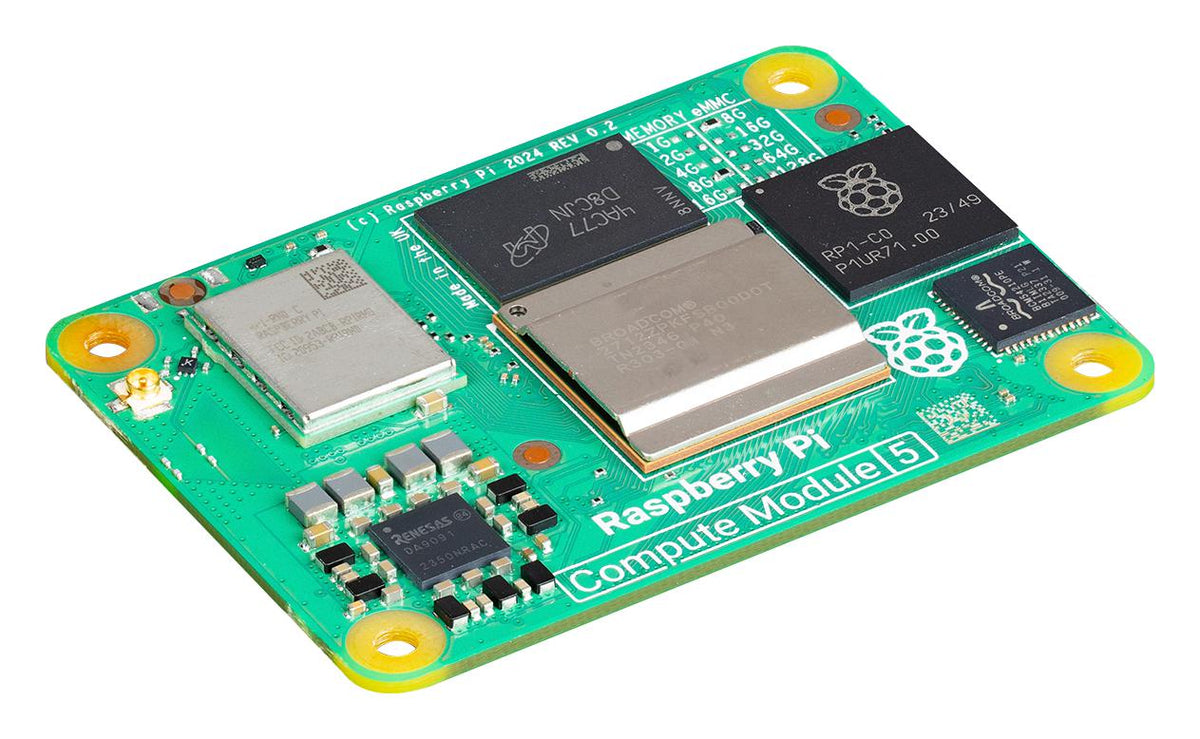

Equipped with a powerful quad-core ARM Cortex-A76 processor and VideoCore VII GPU, the CM5102016 is capable of handling even the most demanding tasks. This module features dual 4Kp60 HDMI output, Gigabit Ethernet, and an optional fully-certified wireless module that provides Wi-Fi and Bluetooth connectivity for seamless integration into a variety of environments.

The Compute Module 5 offers extensive I/O interfaces, with up to 30 GPIO pins supporting either 1.8V or 3.3V signalling, and various peripheral options such as 5 UART, 5 I2C, 5 SPI, 1 SDIO interface, 1 DPI, 1 I2S, 4 PWM channels, and 3 GPCLK outputs, allowing for maximum flexibility and customisation in your projects.

Applications

Ideal for a wide range of embedded applications, the CM5102016 is perfect for embedded design & development, electronics design, industrial environments, IIoT (Industrial Internet of Things), and IoT (Internet of Things).
